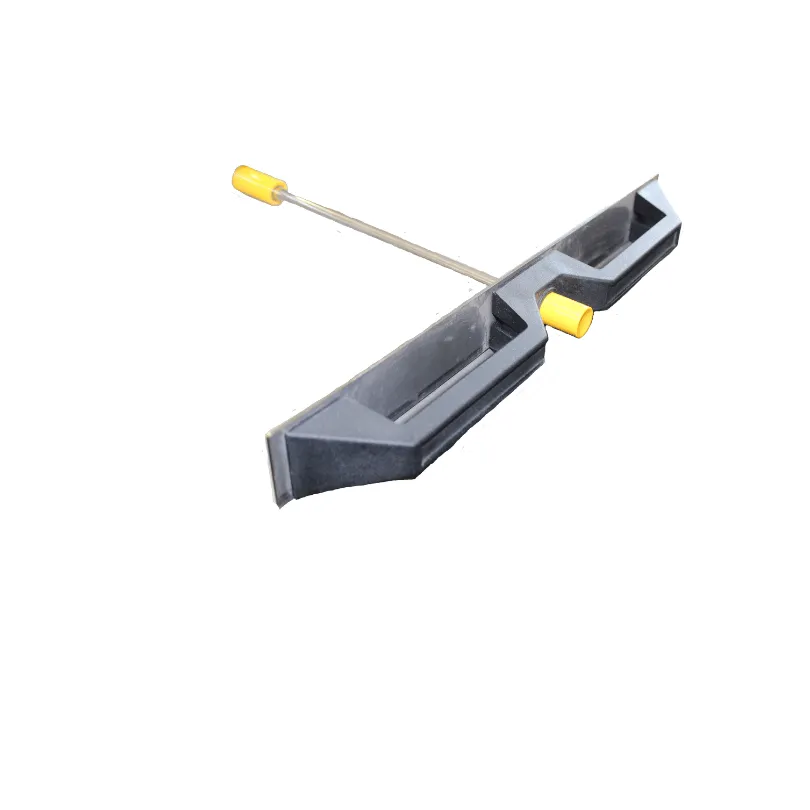

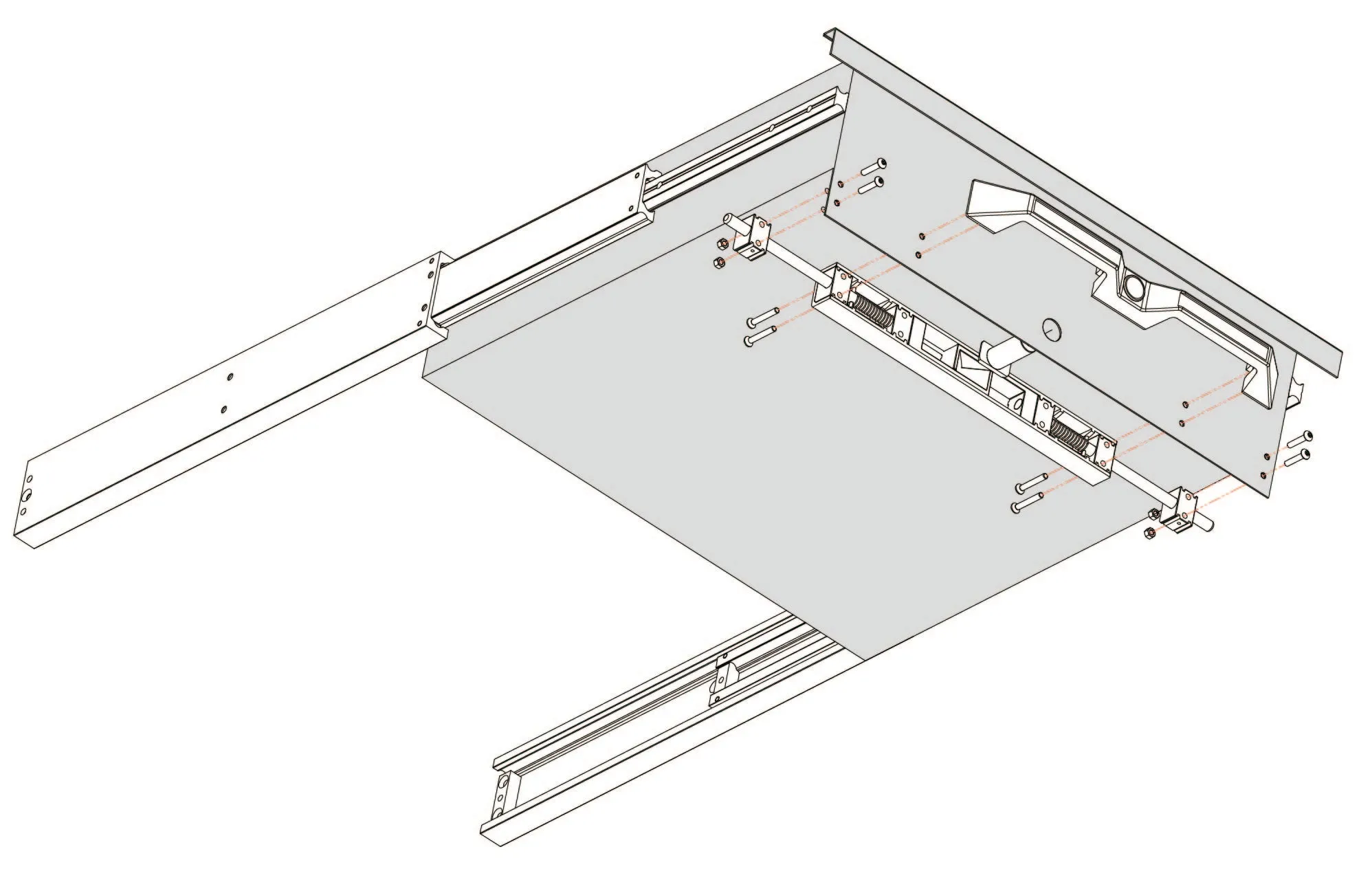

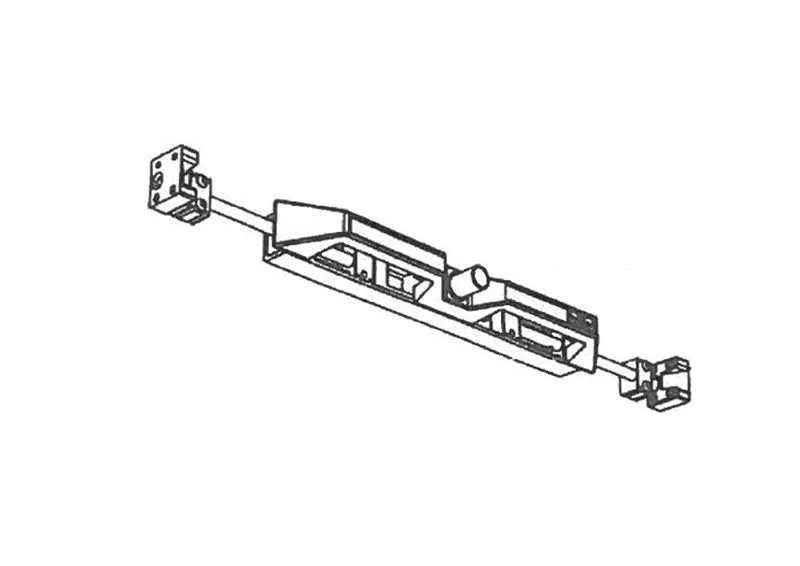

Our Front Mounted Locking Handle is suitable for our 56mm and 76mm heavy duty ball bearing drawer slides range. This locking handle allows the user to lock a custom built drawer in the closed position and is suitable for drawers with a width of up to 1122mm.
Suitable for a wide range of applications such as: Pick up pull-out platforms, vehicle under floor storage, large product stillage drawers and pull-out access for generators/batteries as well as bespoke engineering projects
Features
- Function: Lock-in
- Drawer Width: Up to 1122mm
- Max Drawer Front Panel Thickness: 7mm
- Material: PBT Glass Fiber Handle; Stainless Steel Parts
- Cycle Approved: 30,000 cycles
- Lightweight and Corrosion-resistant for fuel efficiency and outdoor use.
Set Includes

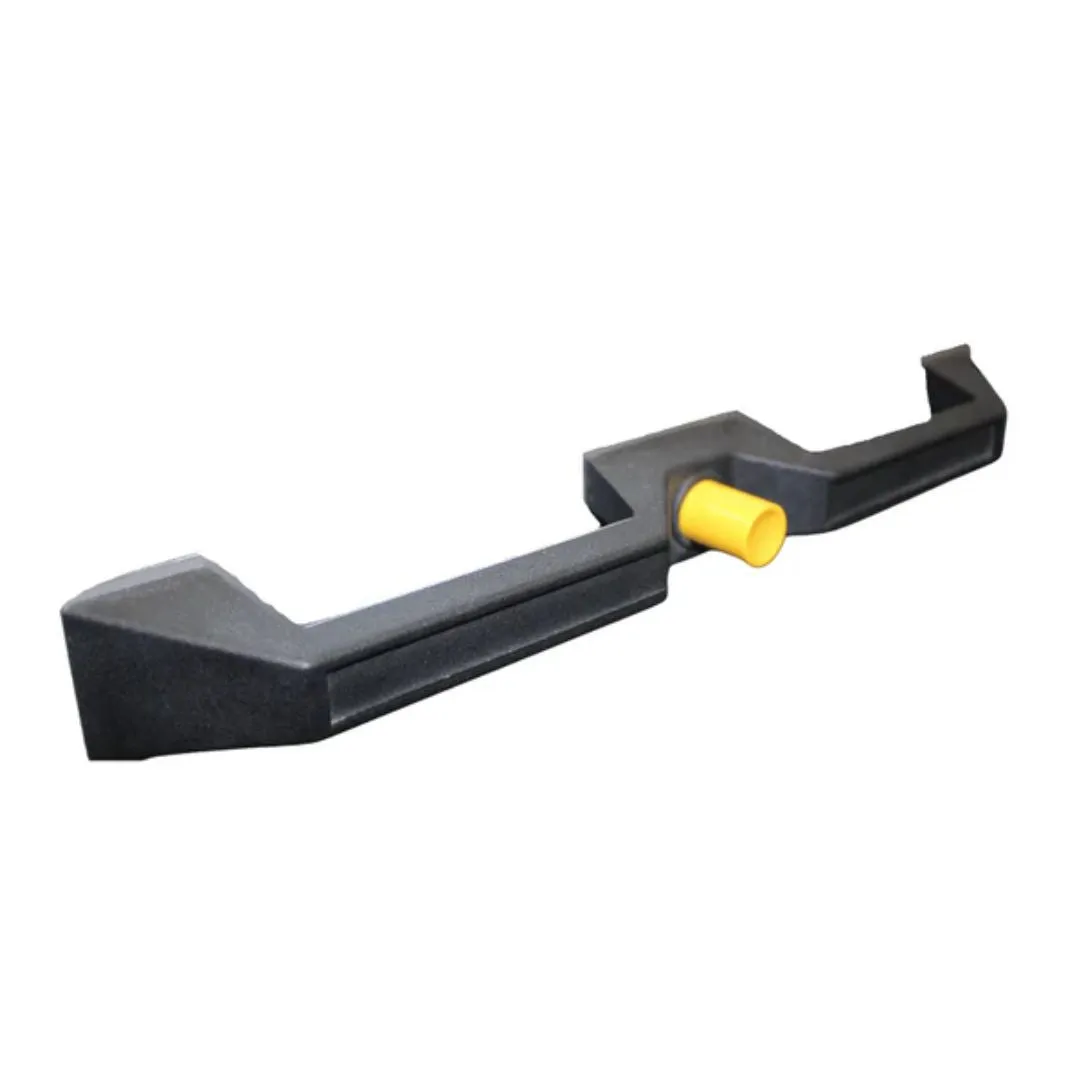

- 1 x Locking Handle (DS91500YL)
- 2 x Stainless Steel (Length: 500mm, Diameter: 10mm) Rods For Drawer Width (DS91500YL)

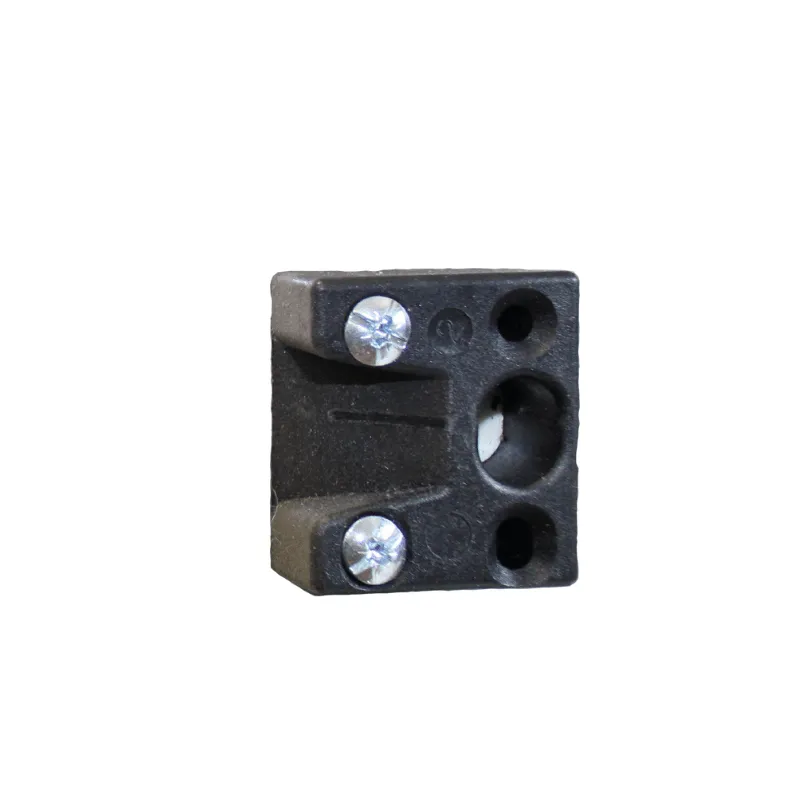

- 1 x Pair of Locking Blocks (DS91002)
- 1 x Pack of M5 Screws and M5 Bolts for fixing (DS91500YL)
More Locking Points?
Additional locking points can be placed through purchasing our locking blocks separately .
Require Lock in and Out
To view our lock in (closed position) and out (open position) handle then please see .
